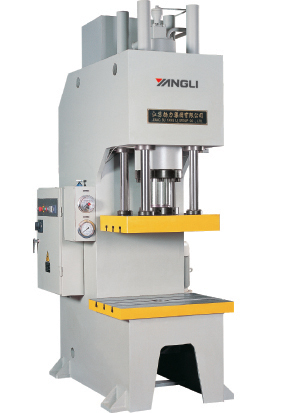

YL41 series single-column hydraulic straightening and mounting press

It adopt intellegient structure,c type single arm frame structure, has the feature such as good reliable,simple structure and easy operation.
The frame is entirely welded with steel plates and treated to relive stress by tempering.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.
Hydraulic system adopt pressure pre-release device,low impact of hydraulic pressure.
Independent electrical control, reliable,audio-visual and convenient for maintenance.
Centralized button control system,with adjustment,hand and semi-auto operateion modes at operator’s choice(semi-automatic has two type tech:set-stroke single and set-presser single).
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.

					YL41-40	YL41-63	YL41-80	YL41-100	YL41-100A	YL41-160
Capacity				kN	400	630	800	1000	1000	1600
Return Force				kN	80	69	115	135	135	210
Max. Hydraulic Pressure				mm	25	25	25.5	25	25	26
Slide Stroke				mm	400	500	500	500	500	560
Throat Depth				kN	280	320	320	380	500	400
Shut Height		Straightening		mm	600	700	700	700	750	900
Shut Height		Pressing		mm	800	1000	1000	1000	1100	1120
Slide Speed		Idle Stroke		mm/s	110	130	70	75	75	75
		Pressing		mm/s	9-22	6-14	8-18	7-15	7-15	7-15
		Return		mm/s	110	125	100	90	90	110
Bolster		LR	Straightening	mm	1100	1200	1200	1400	2000	1600
		LR	Pressing	mm	620	720	720	850	1000	1000
		FB		mm	520	600	600	720	800	720
Slide		LR		mm	560	620	700	700	700	700
Slide		FB		mm	420	460	500	500	500	500
Bolster Height Above Floor				mm	720	750	780	820	820	600
Bolster Opening				mm	φ120	φ150	φ180	φ200	φ200	/
Outline Size	LR		Straightening	mm	1250	1280	1350	1400	2000	1600
	LR		Pressing	mm	1250	1280	1350	1400	1400	1600
	FB			mm	1300	1450	1550	1900	2250	2300
	Above Floor		Straightening	mm	2600	2750	2860	2920	3020	3200
	Above Floor		Pressing	mm	2800	3050	3160	3220	3370	3350
	Below Floor			mm	/	/	/	/	/	/
Main Motor Power				kW	5.5	5.5	7.5	7.5	7.5	15
Weight		Straightening		kg	2800	4200	5300	6400	7400	11000
Weight		Pressing		kg	3000	4500	5500	6800	7800	12000

					YL41-200	YL41-315A	YL41-315	YL41-400	YL41-500	YL41-630
Capacity				kN	2000	3150	3150	4000	5000	6300
Return Force				kN	240	300	300	350	580	650
Max. Working Pressure				mm	25	25	25	25	25	26
Slide Stroke				mm	710	800	800	800	900	1100
Throat Depth				kN	500	800	1250	1250	1500	1500
Shut Height		Straightening		mm	1120	1250	1250	1250	1500	1500
Shut Height		Pressing		mm	1500	1600	1600	1700	1900	1900
Slide Speed		Idle Stroke		mm/s	80	80	80	90	80	80
		Pressing		mm/s	5-12	7-15	7-15	5-12	7-15	7-15
		Return		mm/s	100	75	75	88	80	80
Bolster		LR	Straightening	mm	1600	1800	2000	2200	2500	2500
		LR	Pressing	mm	1200	1250	1400	1600	1800	1800
		FB		mm	800	1000	1200	1300	1400	1400
Slide		LR		mm	750	1250	1100	1150	1200	1200
Slide		FB		mm	600	800	800	900	1000	1000
Bolster Height Above Floor				mm	600	400	400	400	400	400
Bolster Opening				mm	/	/	/	/	/	/
Outline Size	LR		Straightening	mm	1600	1800	2000	2200	2500	2500
	LR		Pressing	mm	1400	1450	1500	1700	1800	1800
	FB			mm	3600	3600	3800	3900	4600	4600
	Above Floor		Straightening	mm	3400	4600	4700	4700	5100	5100
	Above Floor		Pressing	mm	3800	4800	4900	5000	5300	5300
	Below Floor			mm	/	1200	1350	1400	1600	1600
Main Motor Power				kW	15	30	30	30	22×2	22×2
Weight	Straightening			kg	16800	26000	33000	42000	51000	51000
Weight	Pressing			kg	18500	28000	36000	46000	56000	56000
